Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

It can open vertical cardboard and correct the right-angle automatically. Automatic carton erector machine is a case packer that deals with unpacking ,carton flexing and packing. This machine adopts PLC and touch screen to control. As a result, it is more convenient to operate and manage. Additionally, it can reduce labour input and lower labour intensity. It is the ideal choice of the automation producing lines. It will greatly reduce the cost of packing. Hot melt adhesive can also be utilized in this machine.
send email to us

Products Details

Carton Erector Machine

Application(Automatic Carton Erector): Automatic Carton Erector is a kind of flow-line equipment, using for opening boxboards, folding bottoms of boxboards, sealing bottoms of boxboards automatically on a large scale production; it is used widely for packing all sorts of productions with papery boxboards, it is indispensable for automatic productions. Technical Parameter:
Item Parameter
Capacity: 1000carton/hr
Carton dimension L200～500* W130～400 *H150～400mm
Tape model 48/60/72mm
Max packaging dimension L×W×H（mm） 600×400×350
Working Air Pressure 0.6-0.8Mpa, 0.4cube meter air per minute
Machine Dimension L×W×H（mm） L2500×W1400×H2200mm
Total Power: 1.5Kw
Power Supply 380V 50hz 3phase
Components list:
No Name Brand
1 PLC Mitsubishi (Japan)
2 Sliding bearing L30UU(Germany)
3 Peripheral sensor Omron (Japan)
4 Step conveyor system 130BYG (China)
5 Pneumatic valve Airtac (Taiwan)
6 Cylinder Airtac (Taiwan)
7 Parallel translation WT (China)
8 Motor CPG(Taiwan)

Carton Taping Machine

Carton packaging Machine

Characteristics 1. Adopt international advanced technology, use imported components and parts, electric components. 2. According to carton’s size, automatically adjust the different cartons’ height and width. 3. Automatically fold carton up cover, up and down automatically paste adhesive tape, economic and fast and smooth and steady. 4. Add the knife protection device,avoid the accident if operate error. 5. Operate easy and convenient, can run separately and can also connect with the automatic packaging line. Technical Parameter:
Item Parameter
Capacity: 20-25p/min
Carton dimension L200-600*W150-500*H120-500mm
Working plat height 680-800mm
Machine Dimension L×W×H（mm） L1700×W800×H1180mm
Weight 180kg
Total Power: 0.5Kw
Power Supply 220V/50HZ
Components list:
No Name Brand
1 Motor CPG(Taiwan)
2 Touch switch    Omron (Japan)
3 Approach switch Schneider(France)
4 Relay IDEC(Japan)
5 Cylinder Airtac(Taiwan)
6 Knife SKD11(Japan)

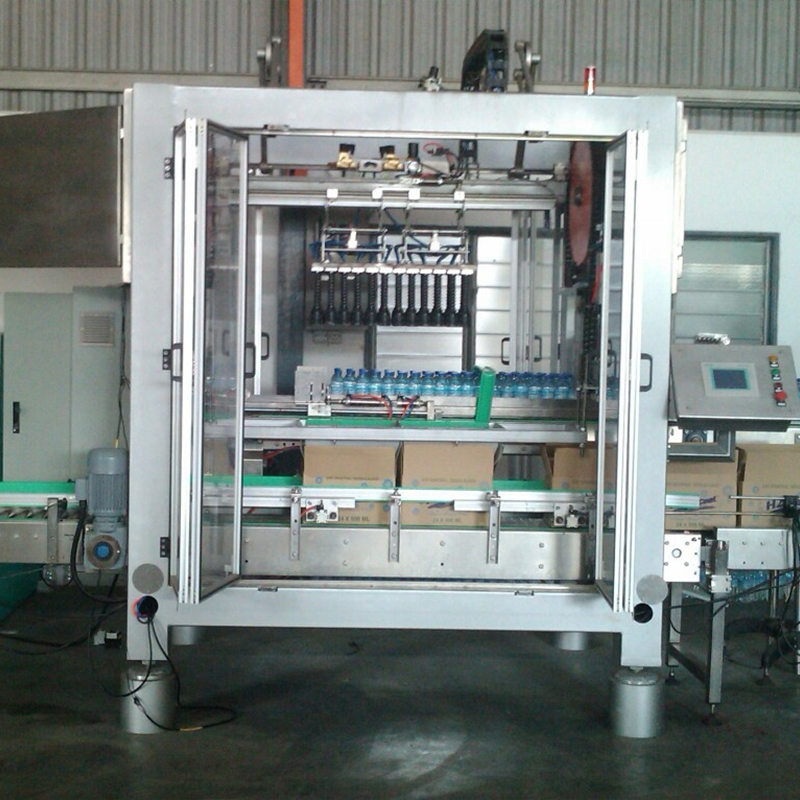

The carton packaging machine is a fully automatic packaging machine that balances plastic or cartons in a certain arrangement. It can meet containers of different sizes, including PET bottles, glass bottles, round bottles, oval bottles and special-shaped bottles, etc. It is widely used in packaging production lines in the beer, beverage and food industries. Device Overview Grab-type carton packaging machine, continuous reciprocating operation, can accurately put the bottles that are continuously fed into the equipment into the carton according to the correct arrangement, and the boxes full of bottles can be automatically transported out of the equipment. The equipment maintains high stability during operation, is easy to operate, and has good protection for the product. Technical Advantages 1. Reduce investment costs. 2. Faster return on investment. 3. High-quality equipment configuration, selection of international common accessories. 4. Easy management and maintenance. 5. Simple and reliable main drive and bottle grabbing mode, high output. 6. Reliable product input, bottle dredging, guide box system. 7. The bottle type can be changed, reducing the waste of raw materials and improving the yield. 8. The equipment is flexible in application, convenient in access and easy to operate. 9. User-friendly operation interface. 10. The after-sales service is timely and perfect. Device Model
Model WSD-ZXD60 WSD-ZXJ72
Capacity (cases/min) 36CPM 30CPM
Bottle diameter (mm) 60-85 55-85
Bottle height (mm) 200-300 230-330
Maximum size of box (mm) 550*350*360 550*350*360
Package style Carton/Plastic box Carton/Plastic box
Applicable bottle type PET bottle/glass bottle Glass bottle
