Carbonated Drinks Aluminum Beer Can Filling Seaming

It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination.

Products Details

Machine Description

It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.

Features

● This machine works harmoniously with chain plate conveyor belt; ● This machine integrated 2 functions: 1. filling the empty cans, 3. sealing the cans.

Filler Station

● High precision beer filling nozzle , ensure high filling precision & filling smoothly & steadily ● Isobaric Pressure filling nozzles which ensure minimal loss of CO2 from the drink ● All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean ● CIP ( clean in place) sideway pipeline in-build, can connect with CIP station or Tap water to clean

Electric Part & Safe Device & Automation

★ When accident system automatic stop & alarm ★ Emergency switch when accident ★ PLC control full-automatic working, inverter in-build, speed adjustable ★ Touch-screen Control Panel, easy operate

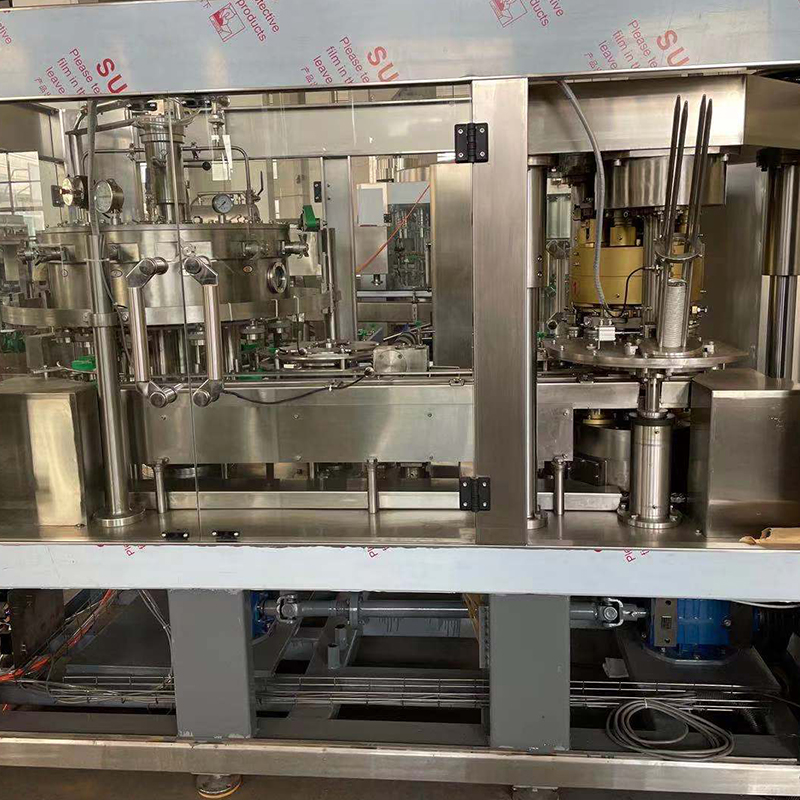

Product Display

Capper Station

● Ingenious lid loading device to make sure no can, no lid loading, no sealing; ● Energy saving model, one motor can process all actions; ● Full sealing effect make sure to be suitable for liquid packing can; ● The machine suitable for all kinds of cans with same diameter, height can be adjusted easily; ● Twice sealing tech to make well sealing effect, no leakage;

Parameter

Model GF12-2 GF18-4 GF24-6 GF32-8
Capacity 1500-2000cans/hour 2000-3500CPH 4000-6000CPH 8000-10000CPH
Can Volume 200-550ml
Can diameater 50-70mm
Bottle high 120-170mm
Machine power 1.5KW 2.2KW 3.7KW 5.5KW
Machine size 175x120x195CM 305x175x220CM 340X195X220CM 350x235x225CM
